■ Designed for loading of DNA samples from multi-well plates
■ Ideal for high throughput electrophoresis
■ Average run-time is just 15 to 30 minutes
■ Direct microplate format for easy lane identification
■ Multichannel pipette compatible combs for speed loading

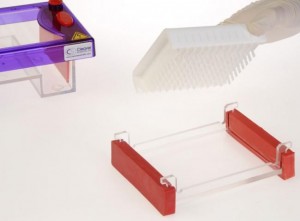

The multiSUB Midi 96 Gel System is ideal for high throughput electrophoresis of PCR products or samples containing a small number of DNA bands.
Its 10x12cm (WxL) gel dimensions and 96-well comb block format correspond to the standard microplate configuration, with additional lanes for markers. Two different types of comb are available: one which has 8 wells and one additional lane for DNA markers and one which has 8 wells and 2 additional lanes for markers.
The offset layout of the wells allows a maximum run length of 1.8cm per well, resulting in improved separation.
multiSUB Midi 96 can accommodate samples from a 96-well plate – samples can be loaded directly using 8-channel pipettes. As with all multiSUB units, leak-proof casting is simplified using the supplied casting dams while their ultra-compact size minimises buffer usage and bench space requirements.
MSMIDI96 Stretch Systems are also available for those users requiring an extended run length per well of up to 3.6cm.
