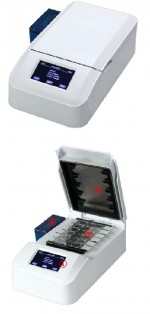

NovaShake-A324 Denaturation and Hybridization System

NovaShake-A324 Denaturation and Hybridization System

MARCA: SENOVA

Programmable system and automatic humidifying that automates the steps in a slide-based (F)ISH procedure, and provides walk-away convenience for clinical and research personnel.

Consulte
The low cost unit accepts a wide range of sample types, is easy to use, and reduces hands-on time by more than 50% while ensuring overall precision and accuracy in all FISH assays. Up to 12 slides can easily be added or removed with one hand. Two-side heating of slides that allows achieving exact corresponden ce of the set and actual temperature and maintaining uniform temperature across all slide positions.

FEATURES:
Y User Programmable Settings
• Touch screen allows for easy toread and easy programming
• 99 user programmable settings
• Three operation modes: denaturation/hybridization, hybridization, and fixed temperature
•To be used as a fixed temperature slide warmer.
Y Easyto use
• Eliminates manual steps and reduces hands-on time during (F)ISH procedures
• Slides do not need to be fully loaded to maintain temperature accuracy
• Slide guide keeps slides in place and allows for one hand removal
• More stringent temperature control
Y More stringent temperature control
• Rapid temperature ramp-up and accuracy of ±1 oc
• Superior temperature uniformity across all slide positions
• Two-side heating slide to temperatures ideal for FISH procedures
Y Ideal for humidity control
• Automatic control humidity, built-in humidity sensor can detect chamber humidity, CPU system can be automatically humidify and keep ideal humidity
• Alarm while the humidity shortage
• Perfect lid seals tightly will maintain uniform temperature and ensure humidity across all slide positions

SPECIFICATIONS:
1. Temperature Control Range: RT+5°C-100°C
2. Temperature Accuracy: ±1°C
3. Temperature Uniform: ±1°C
4. Processing Timer: 1min-99h59min
5. Heating Time(3JOC to 95°C): 3 min
6. Cooling Time(95 oc to 37 °C): 5min
7. Temperature Control Programmable: 30°C-100°C
8. Capacity: 12 slides
9. Overall Dimensions (LxWxH): 38Q x210x160 mm
10. Power Supply
Standard: 220-240Vj 50Hz
Optional: 200-240V/ 60Hz, or , 110V/ 60Hz.
11. Net Weight: 6kg
