FEATURES:

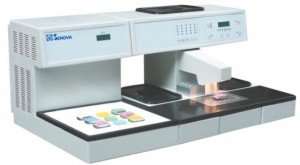

The paraffin Embedding System allows a convenient, quick and careful paraffin embedding of tissue specimens. The modular structure and the standard height of the working area permit to combine the three modules of the embedding Station so as to meet the needs of the user. All functions could be run and checked separately. Each heating and cooling functions are controlled by accurate digital thermostats (heating up +70°C, cooling down to -20 °C). Marble working platform is easy to clean up.

Paraffin Dispenser:
Stainless steel paraffin tank of 3L capacity. The sensor allows to supply paraffin without any mechanism (and without maintenance). Halogen lamp to light up the working area. Wide aluminium hot plate, w ith 6 holes for forceps. Heated basin to collect the excess of paraffin. Possibility to apply heated forceps directly to the
Dispenser Unit.

Thermal Unit:
Stainless steel Upper chamber for paraffin moulds and Lower basin for liquid paraffin ( to store samples from tissue processor) are heated and regulated separately. The stainless steel basin is removable in order to facilitate cleaning operations.

Cooling Plate:
The cooling plate can be used either for embedding and also during microtome cutting operation. The cooling plate has a new frame all around the stainless steel surface which improve cooling performances and prevents the dropping of water around the instrument.

SPECIFICATIONS:
1. Dimensions: 900x500x360(WxDxH,mm)
2. Weight: 53Kg
3. Working supply: 220V/50Hz.
4. Rated power: 1000W
