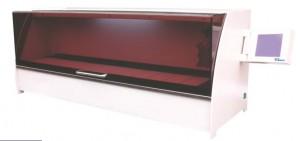

TP400 Automatic Tissue Processor (intelligent touch screen)

TP400 Automatic Tissue Processor (intelligent touch screen)

MARCA: SENOVA

TP400 Automatic Tissue Processor (intelligent touch screen)

Consulte
FEATURES:
􀂾 The cover is elegant with fluent line and it is spraying with APS engineering plastic which has high-intensity,anti-corrosion function and easy to clean With key parts imported, it runs steadily w ithout noise and comply w ith theory of ergonomics
􀂾 20sets programs, LCD touch screen, w ith man-machine dialogue interface , prompt identifying can be made in abnormal situation to make sure each operation can be indicated(online help)
􀂾 The intelligent design gives the ability to deal w ith abnormal situation automatically ;The synchronous animation show the present working process clearly
􀂾 Environment-friendly inner circulated air cleaning system,adsorb,remove,decompose toxic and harmful gas in the instrument
􀂾 Randomly setting start-up time and automatically showing finish time,make sure task is finished in stipulated time
􀂾 10~60s adjustable time of dropping liquid, shaking basket,and drop liquid above cylinder once exchange cylinder to avoid liquid mix from one bath to another,in this way, service time of reagent can be prolonged,keeping the table clean
􀂾 0~ 6times /min adjustable stirring times(0 shows no-stirring),make sure all tissues immersed thorough,evenly,and completed enough
􀂾 Once power-off,protecting cylinderNo.1~7 can be set,position of protecting cylinder can be adjusted as required
􀂾 Self-control fan,it automatically starts up once basket goes up;as basket goes downwards,fan works 10s per min
􀂾 Self-control illuminating lamp,it starts up in programming;touch any key to prolong to 2 min as the instrument is running
􀂾 Waterless inner heating,high precision of controlling
􀂾 Low energy-consuming control circuit,self-protection once power-off;display panel is still illumed and scrolling panel indicates it's self-protecting situation as power-off,and time of running is more than 30 H
􀂾 It can manually add the tissue during the auto running mode. Customer can check and add the tissue conveniently during operation process
􀂾 No less than 150 tissues can be processed one time

SPECIFICATIONS:
Numbers of station: 12 (No.9 : reagent station,No.10,11,12 are wax dispensing station)
Volume of each station: 2000ml
Range of presetting temperature: ambient~80℃
Temperature Tolerance: ±1℃
Processing time of each station: anytime (No.1 station),0~24 H (other station)
Time of exchange station,delay,leachate:10~60s (adjustable),and leachate ,basket shaking w ork above station
Tissue Protecting station : No.1~No.7 Cylinder(adjustable)
Voltage: AC220V/50Hz,110V/60Hz
Pow er: 1000VA
Dimension: 1135x480x490 mm
Weight: 88kg
